A reliable 3 lever sash lock designed for use with lever lock door handles on internal wooden doors. Combining a sprung latch and key-operated deadbolt in one lock case, it provides a practical locking solution for bedrooms, offices and other internal rooms requiring additional privacy and security.
Product Specifications:
3 lever sash lock
Lock case depth: 65mm
Lock case height: 108mm
Backset: 44mm
Centres: 57mm
For use with lever lock door handles
Key-operated deadbolt
Integrated latch bolt
Suitable for internal wooden doors
Faceplate: 155mm × 22mm
Strike plate: 125mm × 25mm
Dust box: 125mm × 16mm
Fixing screws included

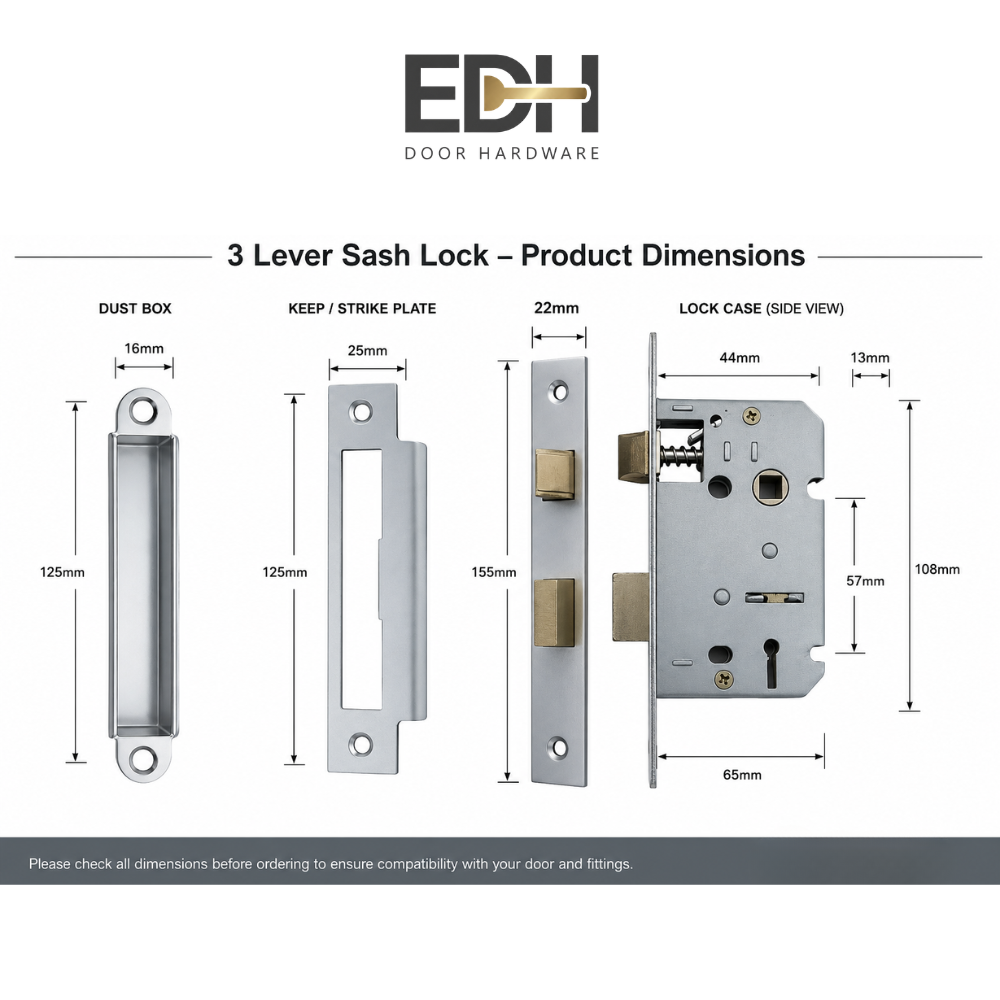

Please note: Check all dimensions shown in the product image before ordering to ensure compatibility with your door and existing fittings.
